1. Product Overview

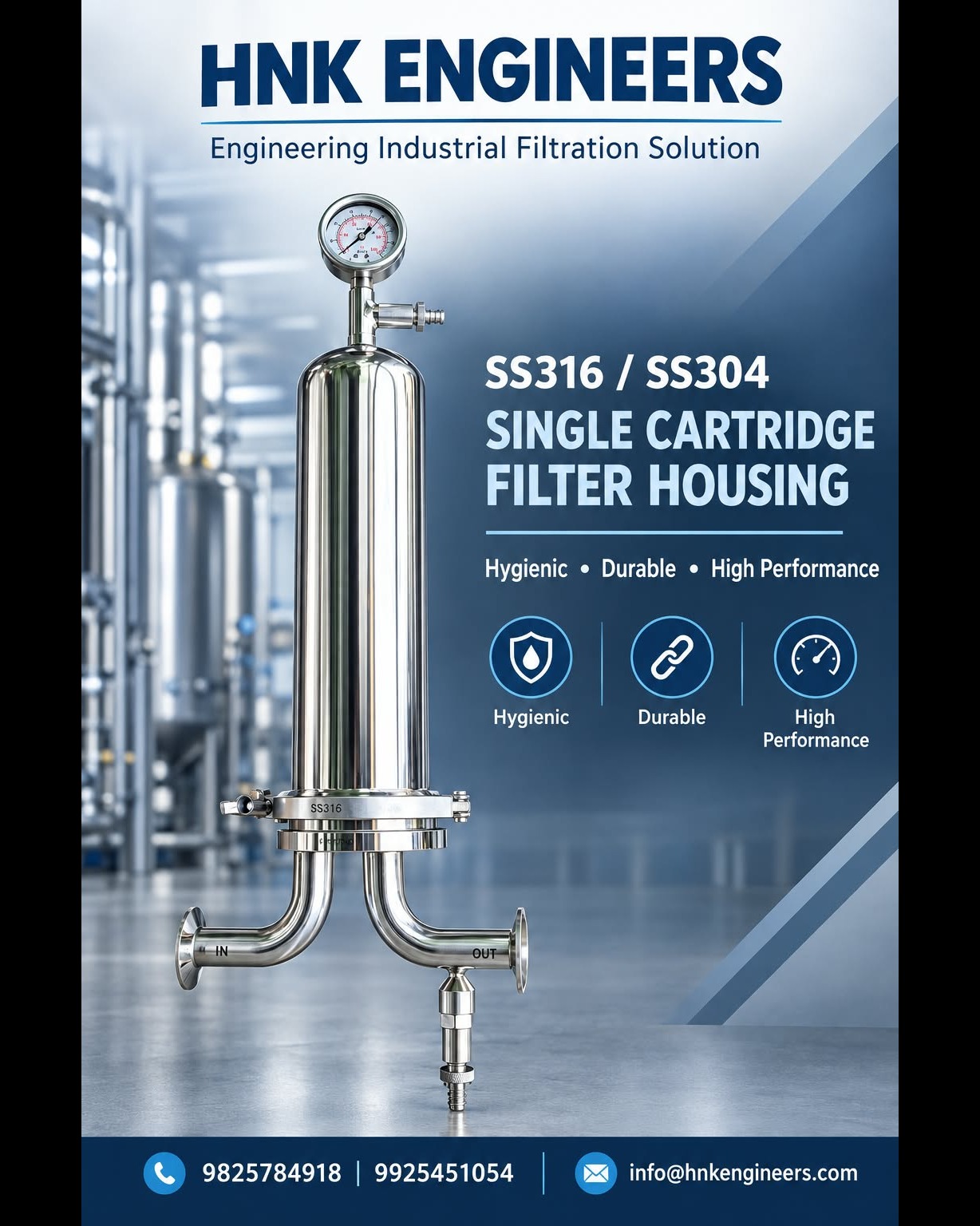

A Stainless Steel (SS) Single Cartridge Filter Housing is an industrial filtration unit designed to remove suspended particles, dirt, rust, sediments, and other impurities from liquids using a replaceable filter cartridge. It consists of a stainless steel housing that accommodates one filter cartridge and provides a secure, leak-resistant enclosure for liquid filtration under operating pressure.
This filter housing is widely used in water treatment plants, pharmaceutical industries, food and beverage processing, chemical industries, RO (Reverse Osmosis) systems, and various industrial liquid filtration applications.
2. Detailed Product Specifications
Parameter
Description
Product Name
SS Single Cartridge Filter Housing
Product Type
Industrial liquid filtration equipment
Housing Material
SS 304 / SS 316 / SS 316L
Cartridge Capacity
1 filter cartridge
Cartridge Length
5', 10', 20', 30', or 40', depending on design
Filter Cartridge Type
PP spun, wound, pleated, melt-blown, or other compatible cartridges
Filtration Rating
Typically 0.2 to 100 microns, depending on cartridge selection
Inlet/Outlet Connection
Threaded, flanged, or other specified connections
Sealing Arrangement
O-ring or gasket sealing
Closure Type
Clamp, bolted cover, or quick-opening arrangement
Surface Finish
Industrial, polished, or electropolished, as specified
Operating Pressure
As per housing design and manufacturer rating
Application
Water, process liquids, chemicals, and other compatible fluids
Note: The above specifications are typical options. Actual dimensions, pressure rating, connections, and material grade depend on the selected model and application.
3. Main Components
Stainless Steel Housing: Provides a durable, corrosion-resistant enclosure for the filter cartridge.
Filter Cartridge: Captures suspended solids and particles according to the selected micron rating.
Housing Cover: Allows convenient access for cartridge replacement and maintenance.
Sealing Gasket or O-ring: Prevents leakage and helps maintain a secure seal.
Inlet and Outlet Connections: Allow the liquid to enter and exit the filtration assembly.
Cartridge Support Arrangement: Holds the cartridge in position and helps ensure proper filtration flow.
Vent and Drain Connections: Optional fittings for air release, depressurization, and draining during maintenance.
4. Working Principle
The liquid enters the filter housing through the inlet connection and passes through the installed filter cartridge. Suspended particles and impurities are retained by the cartridge media, while the filtered liquid exits through the outlet connection.
As contaminants accumulate, the pressure drop across the cartridge increases. The cartridge should be replaced or serviced according to the manufacturer's instructions and the application's allowable differential pressure.
5. Key Features and Benefits
Compact and space-saving design.
Corrosion resistance with suitable stainless steel construction.
Efficient removal of suspended solids and particulate contaminants.
Replaceable cartridge for easy maintenance.
Suitable for continuous industrial filtration when properly sized.
Available with SS 304, SS 316, or SS 316L construction.
Flexible cartridge lengths and micron ratings.
Suitable for integration into pretreatment and process filtration systems.
Helps protect downstream equipment, pumps, membranes, and process components.
6. Industrial Applications
RO plant and water treatment systems.
Pharmaceutical and biotechnology processing.
Food and beverage manufacturing.
Chemical and petrochemical industries.
Cooling water and process water filtration.
Industrial utility water systems.
Paint, coating, and compatible process liquid filtration.
Pretreatment before membrane filtration and other fine-filtration processes.
